Updated : Oct 22, 2019, 3:48 AM

Asus ZenFone Max Plus (M1) Specs

OS

Android 7.0 Nougat

Display

5.7-inch
2160 x 1080 px

Camera

16 MP Main
16 MP Selfie

Battery

4130 mAh

Storage

32GB

Hardware

MediaTek
3GB RAM

Description

Besides the large 5.7-inch full HD+ (1080 x 2160 pixels) display, the Asus ZenFone Max Plus (M1) packs a massive 4,130 mAh battery. The octa-core MediaTek 6750T processor is paired with either 3GB RAM and 32GB internal memory, or 4GB RAM and 64GB storage. The back side features a dual-camera setup (16MP+8MP), while in the front there's an 8-megapixel selfie camera.

This device is also known as Asus ZB570TL

User Score

Be the first to review this phone

Add Review

I want it 1 user

I have it 0 users

I had it 0 users

Popular Comparisons

The Asus ZenFone Max Plus (M1) is most commonly compared with these phones:

Specs

Display
Size	5.7-inch
Resolution	2160 x 1080 px, 18:9 ratio, 424 PPI
Technology	IPS LCD
Screen-to-body	75.34 %
Features	Ambient light sensor, Proximity sensor

Hardware
System chip	MediaTek MT6750T (28 nm)
Processor	Octa-core, 1500 MHz, ARM Cortex-A53, 64-bit
GPU	Mali-T860 MP2
RAM	3GB (LPDDR3)
Internal storage	32GB
Storage expansion	microSDXC up to 256 GB
OS	Android (7.0 Nougat)
Device type	Smartphone
This device has different variants: View all

Battery
Capacity	4130 mAh
Type	Li - Polymer, Not user replaceable
Charging	Fast charging

Camera
Rear	Dual camera
Main camera	16 MP (PDAF) Specifications: Aperture size: F2.0 Focal length: 35 mm
Second camera	8 MP (Ultra-wide) Specifications: Focal Length: 17 mm
Flash	Dual LED
Video recording	1920x1080 (Full HD) (30 fps) Features: Time-lapse video, Picture-taking during video recording, Video calling, Video sharing
Front	16 MP (Wide Angle, HDR)

Design
Dimensions	6.01 x 2.87 x 0.35 inches (152.6 x 73 x 8.8 mm)
Weight	5.64 oz(160.0 g)
Materials	Back: Metal
Biometrics	2D Face unlock, Fingerprint (touch)
Keys	Right: Volume control, Lock/Unlock key
Colors	Black, Gold, Silver

Cellular
4G (FDD)	Bands 2(1900), 3(1800), 4(AWS-1), 5(850), 7(2600), 12(700 a), 17(700 b), 28(700 APT)
3G	Bands 5(850), 8(900), 4(1700/2100), 2(1900), 1(2100)
Data Speed	LTE Cat 4 (150/50 Mbit/s), HSDPA+ (4G) 42.2 Mbit/s, HSUPA 5.76 Mbit/s
Dual SIM	Yes
SIM type	Nano SIM

Multimedia
Headphones	3.5mm jack
Speakers	Earpiece, Loudspeaker
Features	Album art cover, Background playback
Screen mirroring	Wireless screen share
Radio	FM
Additional microphone(s)	Noise cancellation

Connectivity & Features
Bluetooth	4.0
Wi-Fi	802.11 b,g,n Wi-Fi Direct, Hotspot
USB	microUSB, USB 2.0, Features: Mass storage device, OTG, Charging
Location	GPS, A-GPS, Glonass
Sensors	Accelerometer, Gyroscope, Compass
Other	Tethering, Computer sync, OTA sync

Regulatory Approval
FCC approval	Date approved: Nov 10, 2018 FCC ID value: MSQX018D
Measured SAR	Head: 0.54 W/kg Body: 1.11 W/kg Simultaneous Transmission: 1.29 W/kg Wireless Router: 1.20 W/kg

Despite our efforts to provide full and correct Asus ZenFone Max Plus (M1) specifications, there is always a possibility of admitting a mistake. If you see any wrong or incomplete data, please

LET US KNOW.

If you are interested in using our specs commercially, check out our Phone specs database licensing page.

Alternative variants

with 64 GB storage

Differences from the main variant:
RAM	4GB
Internal storage	64GB

News

It took quite some time, but it looks that Asus is finally giving into the trends. You know, the kinds that we saw happen in the smartphone market throughout 2017. The Asus ZenFone Max Plus (M1) is the device that finally brings dual-cameras, a large...

Released at the end of 2017 in some European countries, the Asus ZenFone Max Plus (M1) is now almost ready to be launched in the US, too. Asus just announced that the smartphone should be available in North America (which should mean both the US, and...

Asus ZenFone Max Plus (M1) launches in the US in February: large battery, accessible price

Asus introduced its first ZenFone series smartphone to pack an 18:9 display, the ZenFone Max Plus (M1), last month, but it only made it available for purchase in Russia. Well, it looks like starting this month, the smartphone will be released in more...

Asus ZenFone Max Plus (M1) with 18:9 display goes on sale in Europe, but it's a bit overpriced

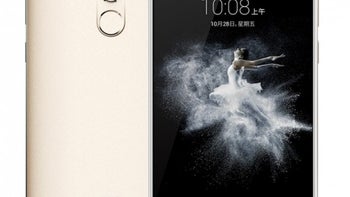

ZTE is one of the few Chinese companies which releases its flagships for the US market, and hopefully the newly-announced Axon 7 Max won't be any different in that regard, as the Axon 7 proved pretty popular here thanks to its stellar price-to-value ...
